Descripziun

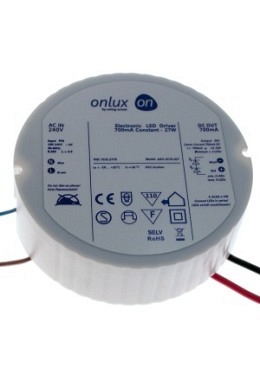

| LED-Supply 700mA 4-9 LEDs |
27W Waterproof / Wasserdicht |
|
|
 Konstant-Stromquelle (CC) für 4 - 9 Power LEDs. Ideal für FlexiLux, DownLux, ipLux, 3W-Klasse Power-LED-Basierte Anwendungen |
|||
 Constant Current (CC) power Supply for 4 - 9 Power LEDs. Ideal for FlexiLux Modular, DownLux, ipLux, 3W-Class-Power-LED-Based applications |
|||
| Characteristics / Typologie |
4-9 3W-LEDs in Series / seriell IP65 - Outdoor / für Aussenanwendung |
||
| Protections / Schutzmassnahmen |
Short, overheat, overload Kurzschluss, Überhitzung, Überlast |
||
| PRI - Input / Eingang |
230V System Input (220-240V) 0.28A Power Factor / Leistungsfaktor > 0.9 |
||
| SEC - Output / Ausgang |
27W output / Leistung (9 LED à 3W max. 4.2V/LED serial) 12-38V @ 700mA / 0.70A Constant Current / Konstantstrom |
||
| Temp. | ta -20°C < ta < 50°C tc < 80°C | ||
| Dimensions / Masse | D x H = 72.1mm x 25.1mm, ___g |
||
| Labels / Markierungen |             |
||
| Data-Sheet / Datenblatt | - | ||
| Order N° / Bestellnummer / PID |
7535.2770 |
||
